Janome / Janome Quilting Accessory Kit JQ8
Janome Quilting Accessory Kit JQ8
  • Janome Quilting Accessory Kit JQ8 Spares & Accessorie
  • Janome Quilting Accessory Kit JQ8 Spares & Accessorie 2

Janome Quilting Accessory Kit JQ8

Now £185.00
0 reviews
QUANTITY

Product Code : JQ8 / 863407011
Product Details

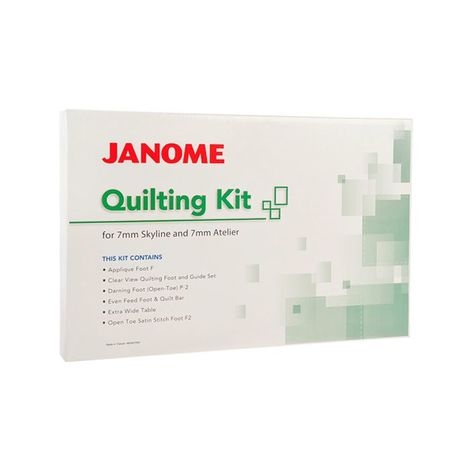

The Janome Quilting Accessory Kit.

Janome Quilting Kit Includes:

  • Large extension table
  • Applique foot
  • Clear view foot
  • Ditch quilting foot
  • Convertible free-motion foot set
  • Open toe craft foot

Specially designed for the Janome Atelier 3 Sewing Machine.

Extension Table Size: W 12 x L 19.5 inches.


OUT OF STOCK - MORE ARRIVING EARLY JUNE 2019



Now 185.00

Janome Quilting Accessory Kit JQ8 Spares & Accessorie

Janome Quilting Set for Atelier 3

This kit contains:

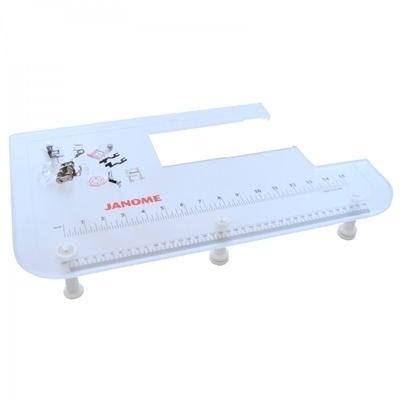

Extra Wide Table

Attach to your sewing machine with the appropriate fixings for when you need a larger work area.

Assembling the Extra Wide Table:

  1. Peel off the backing paper from the rubber soles and attach to the bottom of the legs.
  2. Attach the 4 legs to the table top with the screws.
  3. Select the table support short or long which is suitable for your sewing machine.  Attach the table support to the underside of the table top by inserting the hooks into the slots.
  4. Remove the extension table.  Place the assembled table on the machine so the table catches the pin on the backside of the free arm.
  5. Adjust the height of the table top by turning the adjusting screw.



Open Toe Satin Stitch foot

The open toe allows for a better view of sewing in progress. This foot can be used in place of the satin stitch foot.



Convertible Free Motion Quilting Foot Set

For a more pleasurable free-motion quilting experience, this set includes 3 left needle position feet and 1 zigzag stitch foot (centre needle position).

Attaching the foot:

  1. Remove the foot holder and attach the free motion quilting foot.  Make sure that the needle enters the hole in the foot.

Changing the sole:

  1. Raise the foot and turn the round nut to bring the sole to the lowest position.
  2. Remove the setscrew and remove the sole.
  3. Attach the desired sole and secure it with the setscrew.

    Note: The clear view sole can be used for zigzag stitches and straight stitch with centre needle position.  All other soles must be used only for straight stitch with left needle position.

Adjusting the height of the foot:

  1. Lower the foot (turn the handwheel to bring the presser bar to the lowest position on the embroidery machine).
  2. Adjust the height of the foot by turning the round nut until the bottom of the foot barely touches top of quilt layers.

Machine settings:

Sewing:

  1. Sew at medium speed while guiding the quilt layers with your hands.  Move the quilt layers 3mm or less per stitch.
  2. Caution: Do not move or pull the quilt layers toward you when sewing with the open sole foot, otherwise the needle can warp and may hit the needle plate to break.

    Notes: Use the straight stitch needle plate when sewing with straight stitches.  Increase the thread tension to 4-6 when shewing straight stitch with centre needle position.

Sewing with zigzag stitches:

  1. Set the stitch width at 7 or less.
  2. Use the purple tip needle to prevent slip stitches.



Applique Foot

Applique is easier and results are more precise thanks to this foot’s shorter length at the front and an elevated heel which allow for easy manoeuvring on cures and angles.

Machine settings:

To attach:

  1. Insert the rear pin of the foot into the rear groove of the foot holder.
  2. Gently lower the presser foot lifter while holding the foot with your finger to fit the foot.

    * Please refer to your machines instruction manual for presser foot attachment and removal information.

To sew:

  1. To turn corners, lower the needle at the outer edge of the applique and raise the presser foot.
  2. Pivot the fabric around the needle and lower the presser foot.
  3. Start sewing in the new direction.



Ditch Quilting Foot

Use this foot for perfect placement when stitching in the ditch. The guide on the foot can also be used when adding top stitching along seams.

Machine settings:

To sew:

Set the folded edge along the presser foot guide and sew with a straight stitch.



Clear View Quilting Foot & Guide Set

An essential multi-function set for all quilters, the clear view foot comes with two removable guides: a ¼” guide and a ditch quilting guide. The foot is marked with red guidelines at every 1/8” from the needle in four directions. Designed for maximum ease of use, a unique shaped needle hole allows needle adjustment for scat ¼” and 7mm piecing, while the foot’s see through nature makes fabric control a breeze.

Attaching the guide:

  1. Loosen the thumbscrew and insert the fork of the guide under the neck of the thumbscrew.
  2. Set the guide alongside A or B of the foot (A: ¼” seam guide or B: Ditch quilting guide)
  3. Tighten the thumbscrew.

    * Please refer to your machines instruction manual for presser foot attachment and removal information.



¼” or 7mm Seam Piecing:

Machine settings:

To sew:

  1. Place the fabric matching the side edge next to the guide.
  2. Lower the foot and sew while guiding the fabric edge along the guide.  You can also sew scan ¼” piecing by adjusting the needle drop position.

Stitch in the ditch:

Machine settings:

To sew:

  1. Place the quilt layers aligning the seam line with the guide.
  2. Lower the foot and sew while guiding the seam line along the guide.



1/8” seam piecing:

Machine settings:

To sew:

  1. Place the fabric matching the right edge with the red line to the right.
  2. Lower the foot and sew while guiding the fabric edge along the red line.

    * The red lines are marked at every 1/8” from the ¼” seam needle drop position.  Use these lines to measure the seam allowance.

Table Dimensions: 500 x 300mm (19 1/2 x 12 inches) Approx.
